Grain Bin Installation

#HopperGrainBin https://goo.gl/4HbWVw Hopper bottom silos (also called cone bottom silos, hopper bottom storage bins, hopper bins) are the steel silos with a cone bottom. The hopper, rings and support steel are made of hot-dip galvanized steel sheet. All our hopper cones for grain bins are designed in accordance D-4097 or ASTM D-3299 standards for elevated cone heads. According to the stored grain products and storing situations, the hopper or cone angles are commonly designed at 45º and 60º. The structure of hopper silo depends on the type of products to be stored. In generally, free flowing products pellet products like corn, wheat, soybean and feed pellets require the hopper bottom silo with a 45° angle while powder or other material which is hard to flow fits 60° cone bottom silo storage.

How to Install The Silo door on Silo Bin

#silobindoor  https://goo.gl/tmCXB8

Shelley Brand flat bottom silos bins are composed of silo roof, manhole, roof handrail, natural vent, inside and outside ladder, ladder safety guard, inside and outside stiffener, silo door, silo door platform, sweeper, bucket elevators, dust collectors, temperature moisture controller, storage level indicator and storage control system.  All of them are integrated into the seamless system to keep you  grain storage automatic, safe, efficiently and effectively. All parts are of grain bins made with standard and high quality materials in the strict process and quality control. .

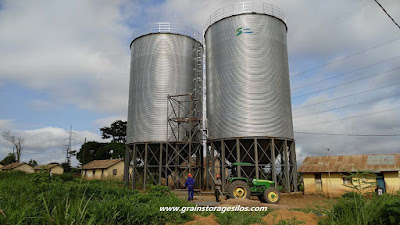

BV Certificated 500t Farm Silo Project in Congo

BV Certificated 500t Farm Silo Project in Congo

Farm Silo (also called farm bin) is the kind of steel silo which is widely used to store corn,
soybean or wheat, etc.  The Congo customer has a large farm,  corn and soybean
are the most planted grains.
As the grain output increased very fast, he wanted to find steel silos to for cereal storage.

The farm silo project has  2 sets 500t hopper silos, or 2 sets 500t farm bins,
the 500t grain storage silo model is very popular to customers,
he choose the classical steel silo model.
The farm silo diameter is 8.25m,  the farm bin rings is 10m,
the farm silo ring beam height is 4.98m,
the silo eave height is 16.235m, the total height of this hopper silo is 18.14m,
the volume of this grain silo is 708m³, it can store 531 tons of  soybean, maize or corn.

The grains will be cleaned by the cleaning system before storage.
The whole grain cleaning system includes the pre cleaner (pre cleaning machine), cyclone,
deduster (dedusting machine), fan, pulse dust collector, dedusting pipe etc.

All the exported steel silo equipment were passed by BV certifications. Now the farm silo project has been successfully running for three months,The Congo customer is very satisfied with the project.

As the professional grain storage solutions provider, Shelley Engineering had been dedicated in designing, manufacturing and supplying innovative and high quality grain storage and handle solutions for more than 8 years. In recent years, we have been keeping on investing in technological innovation, grain security control and monitoring system and automatic grain storage system. Our set of products and solutions can satisfy your grain storage requirements by our solid technologies and professional staffs. We had provided high competitive grain storage silos and solutions to over 50 countries. Our customers are from Argentina, Australia, New Zealand, America, Uganda, Ethiopia, Honduras, Iran, India, Korea, Malaysia, Myanmar, Poland, Pakistan, South Africa, Sudan, Serbia, Thailand, Ukraine and Vietnam, etc.

How to put silo bin on silo hopper bottom

#Conegrainbin https://goo.gl/4HbWVw Hopper bottom silos (also called cone bottom silos, hopper bottom storage bins, hopper bins) are the steel silos with a cone bottom. Hopper bottom silos are erected on the supporting structure to make the delicate products unloading easily through gravity. Hopper silos have a smooth wall hopper transition with no steps or flanges to offer the cleanest product discharge from the silo. The stored products inside the silo are isolated from the ground, thereby preventing humidity and allowing the interconnection of silos through tapes, facilitating perfect extraction or dosage.



The hopper, rings and support steel are made of hot-dip galvanized steel sheet. All our hopper cones for grain bins are designed in accordance D-4097 or ASTM D-3299 standards for elevated cone heads. According to the stored grain products and storing situations, the hopper or cone angles are commonly designed at 45º and 60º. The structure of hopper silo depends on the type of products to be stored. In generally, free flowing products pellet products like corn, wheat, soybean and feed pellets require the hopper bottom silo with a 45° angle while powder or other material which is hard to flow fits 60° cone bottom silo storage.

How to install the silo by manual

#grainsilo https://goo.gl/pTNfi5

Wheat Steel Silos Run in South Africa



Our South Africa customer sent to inquire for one 6000 tons silo system to store wheat, maize, sorghum, soybean, the designing and manufacturing of grain storage silo projects are very professional and complex. Our engineer had been discussing and analyzing the inquiry with our customer for 2 weeks. We had engaged in three such kind of turn key steel silo system like 6 sets 1000 t silos, two sets 3-1000 t silos and 5 sets 1250 t silos. Our customer was satisfied with our final scheme. The customer visited us 1 month later and signed the order.



In this turnkey silo project, there is one small hopper silo as the temporary discharging silo, it’s one 50 ton hopper silo, truck under the platform receive grain from small silo. Before storage, grain need to clean, The pre-cleaner and vibrating screen cleaner were equipped for the grain storage silos to clean different grains, pre-cleaner is used for cleaning maize, soybean and big size grain, vibrating screen cleaner is used for cleaning wheat, sorghum and small size grain. The pulse dust collector, cyclone and suction fan are designed to remove the dust.

How the elevator works in silo system

#Elevatorworksingrainsilosystem https://goo.gl/PxB8sq Bucket elevator is a powerful mechanism for hauling flowable bulk grain vertically, it is widely used in broad range of flowable materials applications for grain sios. The reliable Shelley bucket elevator is designed with reasonable running structure, highly resistant anti-wear steel and high-strength plastic bucket, which makes it easy for installation and longer trouble-free life span.



The Bucket Elevator consists of a series of buckets attached to a belt or chain with pulleys or sprockets located at the top and bottom of the unit. The buckets are located in a casing or housing to contain the material. Bulk materials are loaded into each bucket as the bucket moves past an inlet point. Shelley company could designs and manufactures a wide variety of bucket elevators based on the characteristics of the bulk material and the process requirements.

What's the inside structure of grain silo bin

#grainsilobinstructure https://goo.gl/HQkZY1

For grain silo, there are two types, hopper bottom silo and flat bottom silo. For both types silo, there are stiffeners on the silo bin, fix the silo bin sheets. Inside stiffener is made of Q235 carbon steel, with painting. Outside stiffener is made of hot-dip galvanized steel with 275g/m2 galvanized coating; Above video show the inside stiffeners of silo.

How To Install The Silo Roof

#GrainSiloFromShelleyEngineering https://goo.gl/5cMsh1

The galvanized water-proof silo roof sheets are supported by the radial beam; The material of the bolted silo body is 275g/m2 galvanized corrugated steel sheets, corrosion-resistant. We designed those silos with wind rings, so the galvanized steel silo has a good wind resistance.

About Shelley Grain Silo Bin

#ShelleyGrainSilo https://goo.gl/oWynzM

We provide assembly steel silos with bin capacity of 10—18,75 m3.  Shelley steel silos are specially designed and made of high-quality galvanizing steel sheets. 275g/m2, 300g/m2, 350g/m2 hot dip galvanizing coating sheets are available for your options. The product life cycle is 20-50 years. Our products completely comply with the national standard of GB50322-2001 “The Grain Code of Silo Design” and have reached the advanced quality levels in performance. All our products are CE BV Certified.

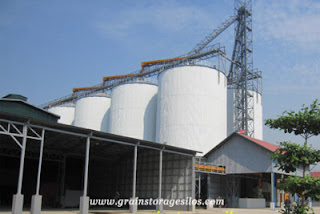

Insulated Storage Bins Had Been Running in Myanmar for 8 Years

Insulated Storage Bins Had Been Running in Myanmar for 8 Years

Insulated storage bins designed and manufactured by Shelley Engineering had been successfully running in Myanmar since 2009. These grain storage bins are used for rice, wheat, maize, corn storage, so they are called corn storage silos, rice silos, maize storage silos, corn storage silos.

The grain silo projects include 10 insulated storage silos, each capacity is 1850 m³, about 1500 tons.  The silo diameter is 11m, silo ring beam height is 6.33m, silo bin height is 23.185m, silo total height  is 25.73m, the 10 sets insulated bins were divided into two lines.

 Insulation storage bins are the steel silos with insulated system which include the silo roof, silo body and silo bottom plus the insulation part. The Insulated bin sheets include three layers, the galvanized sheet inside, the yellow part in the middle, it’s rock wool polyurethane froth, the white part outside layer, it’s colorful steel sheet.
Since the rice is fragile to handle, belt conveyors are applied to transport the rice on insulated bin roof and under steel bin bottom to prevent breakage of the rice. These 10 insulated storage bins had been put into use for over eight years till now, and they are working very well all the time. Our customer is satisfied with our grain silo           products and services.

Taian Shelley Engineering Co., Ltd. ( subsidiary company named Taian Shelley Grain Silo Co., Ltd)  is the leading steel silo designer, manufacturer and exporter dedicated in supplying turn key grain storage solutions to worldwide customers.  We had gained advantages in steel bins research and development, product design, manufacturing, site installation and services since the foundation by Shelley Jin in 2007.

Welcome to visit us.

How to install one elevator for silo system?

#Grainsilo https://goo.gl/R78YNq
Taian Shelley Engineering Co.,Ltd, also named Taian Shelley Grain Silo Co.,Ltd devote to supply the turnkey grain storage steel silo bin system; In the silo system, elevator is one important component of silo system, it used for lifting up the grains and feed into silo bins; the elevator tube can be painted or hot-dip galvanized coating; buckets are made of HDPE.
