Vibrating Screen from Shelley Engineering

Vibrating Screen

Vibrating Screen is one of the commonly used grain cleaning equipment for steel silos, it is suitable for cleaning out dust from grain,  food, chemical, paper, ceramics, coatings and pharmaceutical, etc. Different types of materials can be cleaned by different diameters within the screens.

Description

Vibrating Screen is one of the commonly used grain cleaning equipment for steel silos, it is suitable for cleaning out dust from grain,  food, chemical, paper, ceramics, coatings and pharmaceutical, etc. Different types of materials can be cleaned by different diameters within the screens.

Vibrating Screen for Grain Storage Silos

The driven mechanism is in the center of the machine, the entire screen can be rotated in a pure plane so that the same screening effect is obtained on each part of the screen surface. The machine drive is simple, only one belt will connect the belt wheel of eccentric drive device and the belt wheel of drive motor pulley, vibration frequency of 300 r / min, with a clean-up sieve frame makes the screen to be effectively cleaned, thus ensuring the screening efficiency and screening quality.

Vibrating screen Specifications

specifications of Vibrating screen for steel silos

About Shelley Engineering

Shelley Engineering is the professional steel grain silos designer and manufacturer dedicated in supplying turn key grain storage and handling solutions to worldwide customers. We have more than 30 talented grain storage solutions experts and 9,000 square meters state-of-the-art factory.  Our innovative, high-quality flat bottom silos, hopper bottom silos, powder silos, feed silos, bucket elevators, dust collectors and grain storage control system are integrated as a system to satisfy your grain storage requirements.

Shelley Engineering is not only manufacturing best quality grain storage products but also providing professional design and installation service. OEM, ODM, custom design and fabrication are also available. If you have any questions or inquiries,  please fill and submit the following form, we will reply as soon as possible.

Grain Cleaning Machine from Shelley Engineering

• Suitable to remove light dust or chaff.
• Fan can be situated to cyclone with negative pressure to minimize dust leaks when exhaust ducting.
• Equipped with 4 fitted mounting brackets.
• Fully galvanized construction for outdoor use.
• Triple extraction point for 3 times the performance.
• Fully adjustable internal guides to ensure the best performance on every crop.
• Side viewing panels to see the adjustment effects.

Description

Grain cleaning machine (also called Grain Pre Cleaner) is the important grain cleaners, it is designed and manufactured by Shelley Engineering for simple, fast removal of light and heavy (rubble) impurities from grain, corn, soybeans, wheat, rice or fuel whose particles sizes and weighs are different than impurity particle, all the grain and the impunity dust are inputed into the rotating screen cylinder,The inner mesh and the out mesh have different diameters, the grains are isolated and flow out through different exit from the dusts in the continuous screening process.  The grain cleaner can also be used for screening soybean meal, soybean meal blocking the bulk through continuous rotation, making the soybean meal block decreasing in monocular state.This kind of grain cleaning equipment reduces the emission of dust into the atmosphere.

Features of Grain Cleaning Machine

• Suitable to remove light dust or chaff.
• Fan can be situated to cyclone with negative pressure to minimize dust leaks when exhaust ducting.
• Equipped with 4 fitted mounting brackets.
• Fully galvanized construction for outdoor use.
• Triple extraction point for 3 times the performance.
• Fully adjustable internal guides to ensure the best performance on every crop.
• Side viewing panels to see the adjustment effect

Applications

Grain cleaning machine is applied in food, starch, oil, alcohol and other industries to clean out the dust from the grain.  It is widely used in grain storage silos, bulk storage systems, food processing plants or feed production lines.

About Shelley Engineering

Shelley Engineering is the professional steel grain silos designer and manufacturer dedicated in supplying turn key grain storage and handling solutions to worldwide customers. We have more than 30 talented grain storage solutions experts and 9,000 square meters state-of-the-art factory.  Our innovative, high-quality flat bottom silos, hopper bottom silos, powder silos, feed silos, bucket elevators, dust collectors and grain storage control system are integrated as a system to satisfy your grain storage requirements.

Shelley Engineering is not only manufacturing best quality grain storage products but also providing professional design and installation service. OEM, ODM, custom design and fabrication are also available. If you have any questions or inquiries,  please fill and submit the following form, we will reply as soon as possible.

Drag Conveyor from Shelley Engineering

Drag Conveyor from Shelley Engineering

Description

Drag conveyor (also called drag chain conveyor) is one of the commonly used material handing equipment for grain storage silos, it is a light enmasse conveyor which is widely applied for food or grain handling. The drag conveyor is a continuous conveying transportation equipment with a rectangular cross-section connected with the moving chain. Drag chain conveyor is widely used to transport the particles and powdered material horizontally, it also can be used for transport obliquely and vertically.

The drag conveyor does not produce dust and cause no environmental pollution because of the whole sealing of the closed trough, so it can improve the worker operating conditions and can’t cause food scatter when used in the outside. It is also free from weather conditions.Meanwhile, It is capable of executing both single point and multi-point feeding and discharging. In some conditions, it has some prominent advantages for the toxic, explosive, high temperature materials transportation. It can also be applied for flying material transportation to protect working conditions  and prevent environment pollution.

Features of Drag Conveyor

• High performance, easy to operate, easy to maintain
• Stable running, low noise and long service life
• Thread rod type takeup (tensioner) can be fitted at the tail so as to meet various conveying requirements
• Flexible for multi-point feeding and discharging
• Equipped with an alarming device for material blockage
• Devices for speed loss and chain breakage protection are optional

Drag Conveyor Applications

Drag conveyors are suitable for conveying bulk food, oil, feed and other bulk materials. They are widely used in sea port, dock, grain depot and the malt, flour, brewery, feed and chemical industries for horizontal bulk material conveying.

About Shelley Engineering

Shelley Engineering is the professional steel grain silos designer and manufacturer dedicated in supplying turn key grain storage and handling solutions to worldwide customers. We have more than 30 talented grain storage solutions experts and 9,000 square meters state-of-the-art factory.  Our innovative, high-quality flat bottom silos, hopper bottom silos, powder silos, feed silos, bucket elevators, dust collectors and grain storage control system are integrated as a system to satisfy your grain storage requirements.

Shelley Engineering is not only manufacturing best quality grain storage products but also providing professional design and installation service. OEM, ODM, custom design and fabrication are also available. If you have any questions or inquiries,  please fill and submit the following form, we will reply as soon as possible.

Powder silos from Shelley Engineering

Powder silos (Powder bins) are widely used to hold and discharge flour and other powder materials such as cement and PFA (Pulverized Fuel Ash). Powder is not easy to store and deliver. Steel powder storage silo is your good choice to hold and discharge weighty powder materials. Flour is such kind of powder as the basic ingredient for many food products and stored in silos up to 20 meters high. The filling and emptying of powder silo is often performed by pneumatic systems that transport the stored powder from the large external powder bins and deposit them in smaller holding vessels for further processing. The filling and emptying processes are controlled by reliable level measurement. Pressure monitoring is also required in the pneumatic conveying pipelines.  Elevators or conveyors can also be used to handling  powder transporting.Powder steel silo is your good choice to hold and discharge weighty powder materials.  Powder storage silos have the characteristics of lower cost, shorter construction time and unloading materials easily.  The capacity of Shelley steel powder storage silos ranges from 20m³ to 800m³.



• Perfect sealing assures its efficient working performance.
• convenient installation.
• Waterproof and moisture-proof.
• Screw connection on inner side, anti-corrosion.
• Can be customized.
• Safe and reliable.
• Unhindered discharge, no blocking.

Powder silo (powder bin) includes the silo roof, silo body and silo hopper with legs. Powder silo roof, body, hopper are made of carbon steel, with food grade painting, make sure the safety of the flour; On silo roof, there are flour inlets, safety valve, Vibration filter, Explosion-proof vent, manhole. On silo body, there are ladder, ladder safety guard, level indicator.   Powder silo leg is made of round pipe or H beam steel (with normal painting), based on the silo size. According to the customer’s requirement, Powder silo also can be made with stainless steel.

Powder silo can be used indoor or outdoor, round type or square type, no normal specifications. Shelley Engineering can design the flour silo to satisfy the your requirements.

Powder silos are widely used in flour mill, flour plant, wheat maize farm, food processing plants or feed production lines, etc. They are also can store cement, powder, lime, gypsum, fly ash, different binder materials, gravel, limestone, sand and different chippers.

Feed Silos From Taian Shelley Engineering Co.,Ltd

Feed Silos From Taian Shelley Engineering Co.,Ltd

Feed silos (also called feed bins, gravity feed bins) are the steel silos with 60° cone bottom which are commonly used to storage small capacity pelleted products and grains, allowing them to discharge freely through gravity from the silo into a bag, barrow, conveyor or truck whilst ensuring that the stored products are in the finest qualified condition.

All our feed silos are made with corrugated galvanized steel. The feed bin bottom is designed with with 60° cone to let the stored pellets flow out freely without fragmentized. The Galvanization of our silos is Z600g/m2 in accordance with UNE-EN 36130, which make them durable and weatuer resistant. The galvanizing sheet is 275g/㎡as standard design, according to some customers special request, 350g/㎡and 400g/㎡are options for their needs. Feed silos can help you get maximum efficiency when loading and unloading stored products. They are also protect the inside storage away from outside insects and danger. Feed silos can be integrated with automatic feeding systems for a variety of livestock industries.

Features of Feed Silos

• Feed silos are made with corrugated galvanized steel.

• Integration with silo storage control system makes stored products loading or unloading automatically.

• Round-head screws in the hopper.

• The storage capacities from 5m³to 100m³ for you select.

• Stainless steel hopper is available according to your requirements which will protect your steel silos from the environmental impact, improve slippage and increase resistance to corrosion.

Structures of Feed Silos

Feed silo is mainly composed of silo roof, silo body and cone bottom.

The feed bin body includes the wall plate, supporting column, ladders on the silo body, protect handrail around ladders, silo door and door platform (based on silo diameter and height).

If the silo diameter is less than 3.6m (1.8m and 2.7m diameter), the silo roof can be open by the pulling bar from the ground. If the silo diameter is more than 3.6m, the silo roof is assembled with radiated beam, manhole, ladder, ladder safety or roof  handrail.

Silo cone bottom is made of galvanized steel sheets, with 60° angle, so feed can flow easily by gravity; If the silo diameter is or less than 3.6m, the steel hopper sheet and legs will be made of galvanized steel sheet. If the silo diameter is or more than 3.6m, the steel hopper sheet and legs will be made of H beam steel with painted or galvanized.

Optional conveying system for feed silos

Four kinds of conveying system can be selected to handle stored materials for feed silos.

The first choice is pneumatic conveying system, which is effective and space saving, and widely selected for fine materials, like animal feed, wood pellets, etc.

The second choice is wheeled or fixed auger (Screw conveyor), whose structure is simple and operation is very convenient.

The third choice is elevator, among them bucket elevator is commonly applied for large capacity storage.

The last selected handling equipment is belt elevator for bulk materials.

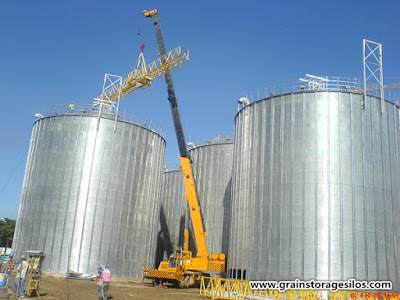

10000t Flat Bottom Bin Project in Ukraine

10000t Flat Bottom Bin Project in Ukraine

Flat bottom bin (also called flat bottom silo) are commercial steel silos or steel bins to storage bulk grains. The volume of this type of grain bins is about from 39 m3 to 29726 m3/set;

These 10000t flat bottom bins are erected on the concrete foundations for long-term storage of large quantity of grain, seeds, pellets etc.; All of TSE flat bottom silos or flat bottom bins are designed/manufactured/installed in accordance with Chinese national standards.

Shelley Engineering Co.,ltd. (Shelley Grain silo co.,ltd.) has installed 4 sets 10000t flat bottom bins system for wheat storage in Ukraine. The flat bottom silos project includes 4 sets 10000t galvanized steel silos, and 200t/h grain bucket elevators, 200t/h drag chain conveyors.

10000t flat bottom bins specifications

• Model–TCK26522
• Diameter–26.598m
• Volume–15116m³
• Eave Height–24.695m
• Total Height–32.34m
• Flat Bottom Silos Rings–22rings
• 10000t Flat Bottom Bins Net Weight–140.619ton

The silo roof and bins body sheets are made of high yield hot-dip galvanized steel sheets with 275g/m2 coating mass; There are roof beams under the grain bins roof sheet  &  stiffeners on the grain bins body for supporting;

200t/h wheat bucket elevator specifications

• Model–TDTG80/47
• Head Wheel Diameter–800mm
• Buckets Width–470mm
• Capacity–200t/h
• Power–55kw
• Elevator Height–45m

200t/h wheat drag conveyor specifications

• Model–TGSS63
• Tube Width–630mm
• Capacity–200t/h
• Power–55kw
• Length–40m

About TSE

As the professional grain storage silo manufacturers and suppliers, Shelley Engineering (TSE) had been dedicated in designing, manufacturing and supplying turn key grain storage solution for over 10 years. Our innovative, high quality products include flat bottom silos, hopper bottom silos, powder silos, feed silos, bucket elevators, drag conveyors, belt conveyors, dust collectors and grain storage control system, etc. There were more than 1,000 sets of steel storage silo projects running in domestic and 50 overseas countries since 2007. All our products are CE Certified.

Shelley Engineering (TSE) is not only manufacturing best quality grain storage silos and handling equipment products but also providing professional design and installation service. OEM, ODM, custom design and fabrication are also available. If you have any questions or inquiries,  please fill in and submit the following form, we will reply as soon as possible.

Rice Husk Silo Site Visiting in Myanmar

Rice Husk Silo Site Visiting in Myanmar

One Myanmar customer purchased 2 sets of 730m3 rice husk silo and four grain conveyors, three grain bucket elevators from TSE company for his bulk rice husk storage on August 31th, 2017.

Now this steel silo project for rice husk storage had been being established in Yangon, Myanmar. TSE CEO Shelley now is in Myanmar for checking the installation progress and site condition. Everything there goes fine and the customer high evaluated TSE installation leader, he is pretty satisfied with the installation working guided by him.



During Myanmar visiting period, Shelley also plans to visit some other customers who are interested in grain steel silo. If you’re interested in it, please feel free to contact +86 18653877118

Welcome to visit new TSE silo project!

TSE aiming to provide the best and most safety grain storage solution to customers !



Shelley Engineering (TSE) is not only manufacturing best quality grain storage silos and handling equipment products but also providing professional design and installation service. OEM, ODM, custom design and fabrication are also available. If you have any questions or inquiries,  please fill in and submit the following form, we will reply as soon as possible.

Flat bottom silos from Shelley Engineering

Flat bottom silos from Shelley Engineering

Flat bottom silos (also called flat bottom bins, flat bins) are commonly selected steel silos or steel bins to storage bulk grains and other materials. Large volume storage is its typical feature, the storage volume of this type grain storage silo ranges from 39 m³ to 29726 m³.  These grain bins are erected on flat or conical concrete foundations for long-term storage of large quantities of grain, seeds, pellets and granular products, etc. All our flat silos or flat bins are designed, manufactured and installed in accordance with D-4097 or ASTM D-3299 standards.

The flat bottom bins are made of high quality 275g/m², 300g/m², 350g/m²  hot-dip galvanized steel plates which are rolled into corrugation and made into standard connecting holes. The vertical friction is support by the steel silo stiffeners which are evenly vertically applied in the silos. The connecting screw bolts are served with round galvanized steel washers, the connecting holes are served with age-resistant and water-proof daub belts that are for aviation special purpose.These plates and stiffeners are connected by high-strength screw bolts to keep the flat silo strong and durable. The flat bottom silos are equipped with flat repairing doors, outside ladder and ladder guard rings.

Production & Application

In recent years, we had invested more than 3,000,000 dollars into our 9,000 square meters state-of-the-art manufacturing grain bin factory. Our modern factory is equipped with the most advanced machines like fiber laser cutting machines, metal steel sheet CNC bending machine and professional welding line, etc , which give us the power to keep high product quality, shorter delivery time and competitive cost to meet the demands of our worldwide customers. Most products had been kept up with the international forefront counterparts. Some of them have enjoyed leading position, especially grain storage controlling software and grain security system.

Flat bottom silos are widely applied for grain storage, animal feed, flour, starch, rice milling factory, grease processing, brewing, mono sodium amalgamate, biology and chemical industry, environmental protection etc. Our farm used galvanized steel grain bins are also applied for other  kinds of industries because of its large capacity and low cost.

Our flat bottom silo projects were successfully installed and run in Argentina, Australia, New Zealand, America, Uganda, Ethiopia, Honduras, Iran, India, Korea, Malaysia, Myanmar, Poland, Pakistan, South Africa, Sudan, Serbia, Thailand, Ukraine and Vietnam, etc.

Screw Conveyor from Shelley Engineering

Screw Conveyor from Shelley Engineering

• Simple structure, small cross-sectional dimensions and good sealing performance；
• Can be charged and discharged on the entire length
• Can convey two directions in the same slots
• Safe and convenient operation, lower manufacturing costs
• Can stir and loose material at the same time during transportation
• Can be equipped with cleaning door off the bottom, attempts to prevent the doors and electrical control systems and other auxiliary organizations according to users’ requirements

Description

Screw conveyor is one of the main material handing equipment for grain storage silos. TLSS series screw conveyors use spiral blade rotation to promote the bulk material to complete the conveying process, it can be horizontal or inclined (inclination angle of less than 20 °) to convey powder, granular or small pieces of material, can not transport large pieces of corrosive, fragile or easy to bond to a fiber material block.

TLSL shaped vertical screw conveyor is suitable for vertical or greater inclination conveying powder, granular, non-sticky, bulk density of not more than 1.3t / m3 of dry materials, such as grain, bran oil, feed, etc., not suitable for delivery of bulk and viscous material, and it couldn’t convey material bulk density less than 0.5t / m3 and highly mobile.

Features of Screw Conveyor

• Simple structure, small cross-sectional dimensions and good sealing performance；
• Can be charged and discharged on the entire length
• Can convey two directions in the same slots
• Safe and convenient operation, lower manufacturing costs
• Can stir and loose material at the same time during transportation
• Can be equipped with cleaning door off the bottom, attempts to prevent the doors and electrical control systems and other auxiliary organizations according to users’ requirements

Screw Conveyor Applications

Screw conveyor is widely used in grain silos, flour mill, feed processing plants, oil plants, starch plants, mining, chemical and other places.

About Shelley Engineering

Shelley Engineering is the professional steel grain silos designer and manufacturer dedicated in supplying turn key grain storage and handling solutions to worldwide customers. We have more than 30 talented grain storage solutions experts and 9,000 square meters state-of-the-art factory.  Our innovative, high-quality flat bottom silos, hopper bottom silos, powder silos, feed silos, bucket elevators, dust collectors and grain storage control system are integrated as a system to satisfy your grain storage requirements.

Shelley Engineering is not only manufacturing best quality grain storage products but also providing professional design and installation service. OEM, ODM, custom design and fabrication are also available. If you have any questions or inquiries,  please fill and submit the following form, we will reply as soon as possible.

Bucket Elevator From Shelley Engineering

Bucket Elevator From Shelley Engineering

Bucket elevators are powerful mechanism for hauling flowable bulk grain vertically, it is widely used in broad range of flowable materials applications for grain storage silos. The reliable Shelley bucket elevator is designed with reasonable running structure, highly resistant anti-wear steel and high-strength plastic bucket, which makes it easy for installation and longer trouble-free life span.

The Bucket Elevator consists of a series of buckets attached to a belt or chain with pulleys or sprockets located at the top and bottom of the unit. The buckets are located in a casing or housing to contain the material. Bulk materials are loaded into each bucket as the bucket moves past an inlet point. Shelley company could designs and manufactures a wide variety of bucket elevators based on the characteristics of the bulk material and the process requirements.

1. Bucket elevators are capable for different small particle materials handling, including powder, granular and massive materials

2. Big capacity. The series of bucket elevator has a variety of specifications.
The lift range is 10-800 m³ / h.

3. Small power consumption. Use intensive layout of the large-capacity transportation.
chain speed medium, to enhance the amount of the capacity. So driving low energy consumption.

4. Long service life

5. High hoisting height. This series of chain hoist speed moderate, smooth operation,
and adopts the plate chain high strength wear resistant chain, so can reach high
hoisting height (up to 40-50m)

6. Good sealing, less environmental pollution

7. Easy to operation, convenient maintenance, less wearing parts

Structures of Bucket Elevators
The main structure of grain bucket elevator includes bucket, bucket belt, head,

head wheel, booth, transporting wheel, tension device, input bucket, exiting mouth.

1. HDPE buckets to contain the material;

2. Bucket belt (rubber belt or nylon belt) to carry the buckets and transmit the pull;

3. Head wheel with rubber;

4. Means to drive the belt;

5. Accessories for loading the buckets or picking up the material, for receiving the
discharged material, for maintaining the belt tension and for enclosing and
protecting the elevator.

Flat Bottom Grain Bin Project in Honduras

Flat Bottom Grain Bin Project in Honduras

Grain bin (also called grain silo) is widely used for wheat, rice, barley and other grain storage.  The grain bin project includes 5 units of 3,500m³  flat bottom silos. Flat bottom silos are commonly used steel silos o storage bulk grains and other materials. Large volume storage is its typical feature, the storage volume of this type grain storage silo ranges from 39 m³ to 29726 m³.  Grain bin is often  erected on flat or conical concrete foundations for long-term storage of large quantities of grain, seeds, pellets and granular products, etc.  All Shelley brand flat bin for grain storage are designed, manufactured and installed in accordance with D-4097 or ASTM D-3299 standards.

Shelley Engineering had installed grain bin project in Honduras before. This grain storage bin project include 5 units of 3500m³ corn storage silos. The grain silo body is made of 275g/m² coating mass galvanized steel sheets. The grain storage Silo roof and other silo accessories are made of carbon steel with painting.

All SHELLEY Brand grain storage bin sidewall is roll-formed using high quality galvanized steel sheets. Prime high tensile steel up to 450 MPa. Thicker sidewall steel sheet allows us to provide larger silos with our designs. The capacity of Flat bottom galvanized grain silo ranges from 39 m3 to 29726 m3.

The connecting screw bolts are served with round galvanized steel washers, the connecting holes are served with age-resistant and water-proof daub belts that are for aviation special purpose. These plates and stiffeners are connected by high-strength screw bolts to keep the flat silo strong and durable. The capacity of the bucket elevator and conveyors are 200t/h, the catwalk was equipped to support the conveyor and easy for service. The sweeping auger is used for grain discharging on the grain silo bottom. We designed the full floor ventilation system for the flat bottom silos, so the corn in the grain silo could keep safety storage.

The high quality flat grain silos can be widely used for grain mill, feed mill, plant, food factory, farm, grain trade company, port, fertilizer factory etc. If you are interested in the galvanized grain silo, please just contact us, we would give you the most technical design according to your real requirement and site situation.

As the professional grain storage silos manufacturers and suppliers, Shelley Engineering had been dedicated in designing, manufacturing and supplying innovative and high quality grain storage bins and handle equipment for more than 10 years. We had provided high competitive grain storage silos and solutions to over 40 countries. Our customers are from Argentina, Australia, New Zealand, America, Uganda, Ethiopia, Honduras, Iran, India, Korea, Malaysia, Myanmar, Poland, Pakistan, South Africa, Sudan, Serbia, Thailand, Ukraine and Vietnam, etc.

SHELLEY Engineering is not only manufacturing best quality  grain bins but also providing custom design, installation and service for secure and reliable gain silo operation. Welcome contact us for detailed information.

Corrugated Maize Storage Silo in Philippines

Corrugated Maize Storage Silo in Philippines

Maize storage silo (maize silo) project fabricated and installed in a small farm by Shelley Engineering had been running successfully in Philippines since 2016. The total volume of maize storage silo is 500 m³ , it is our hot sale flat bottom silo which volume can reach 15,000 m³.

Our Philippines customer ordered this maize silo to store such grain as maize, corn, soybean gathered from his local farm. The maize storage silo project includes steel silo, bucket elevator and drag conveyor. The bucket elevator loads the grain vertically into the maize storage silo, and the drag conveyor unloads  the grain to the workshop or truck from the bottom of the flat silo.

TSE flat bottom silo is composed of roof, manhole, roof handrail, natural vent, inside and outside ladder, ladder safety guard, body, inside and outside stiffener, door, door platform. The maize storage silo body and roof is made of corrugated galvanized steel sheet with 275g/m² coating mass. All parts are made with high quality materials processed with strict manufacturing process and quality control.



Maize storage silo specifications

• Steel silo volume – 500m³
• Diameter – 8.2m
• Eave Height – 9.015m
• Total height: 10.92m

Bucket Elevator

The bucket elevator includes head, tube, basement, belt and bucket and driving unit. It is often applied to upload designed grain into the maize storage silo. TSE reliable bucket elevator is designed with reasonable running structure, highly resistant anti-wear steel and high-strength plastic bucket, which makes it easy for installation and longer trouble-free life span.

• Bucket elevator height – 19m
• Head wheel diameter – 500mm
• Bucket width – 230mm
• Power – 7.5KW

Drag Conveyor

Drag conveyor is designed to transport the grain horizontal. The thread rod type takeup (tensioner) can be fitted at the tail so as to meet various conveying requirements. It’s flexible for multi-point feeding and discharging. Equipped with devices for speed loss and chain breakage protection are optional.

• Drag conevyor length – 7m
• Tube width  – 200mm
• Power – 1.5KW



About TSE

As the professional grain storage silo manufacturers and suppliers, Shelley Engineering (TSE) had been dedicated in designing, manufacturing and supplying turn key grain storage solution for over 10 years. Our innovative, high quality products include flat bottom silos, hopper bottom silos, powder silos, feed silos, bucket elevators, drag conveyors, belt conveyors, dust collectors and grain storage control system, etc. There were more than 1,000 sets of steel storage silo projects running in domestic and 50 overseas countries since 2007. All our products are CE Certified.

Shelley Engineering (TSE) is not only manufacturing best quality grain storage silos and handling equipment products but also providing professional design and installation service. OEM, ODM, custom design and fabrication are also available. If you have any questions or inquiries,  please fill in and submit the following form, we will reply as soon as possible.
